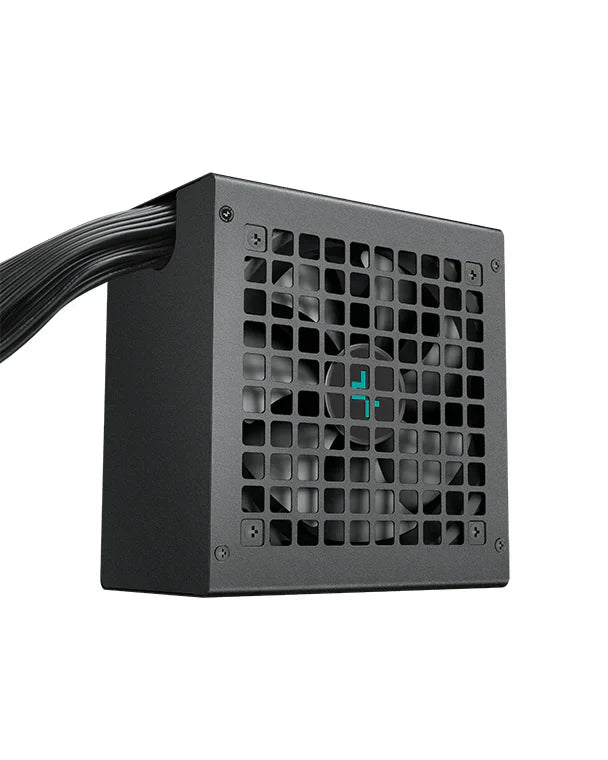

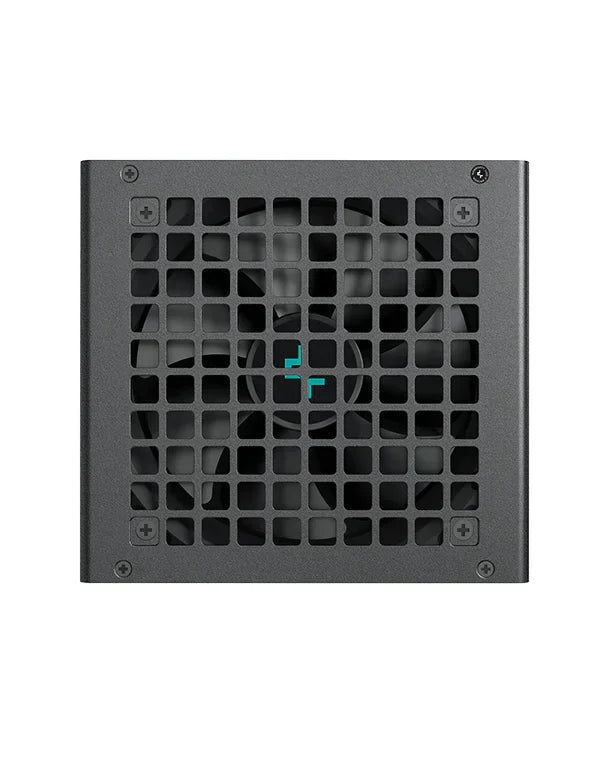

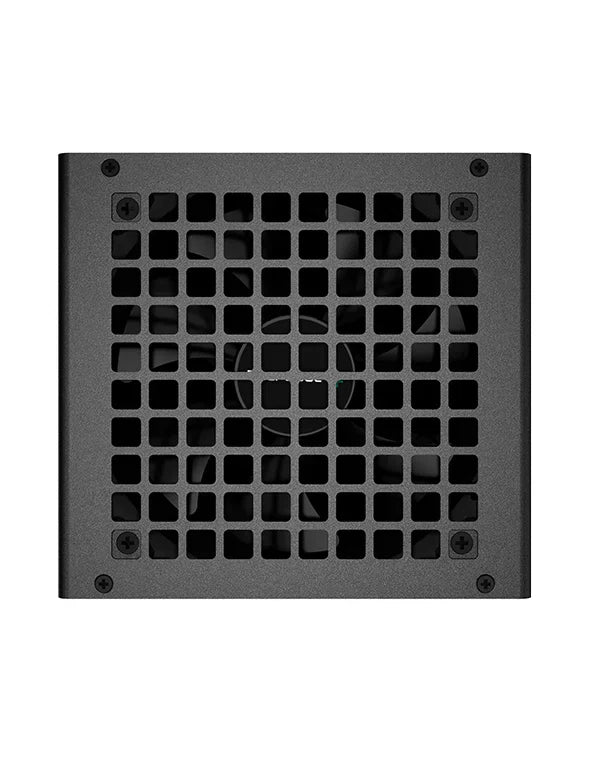

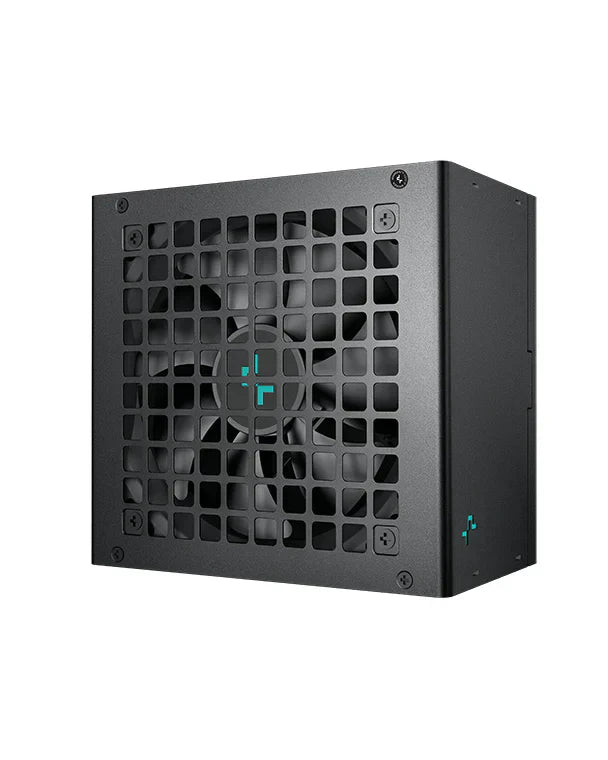

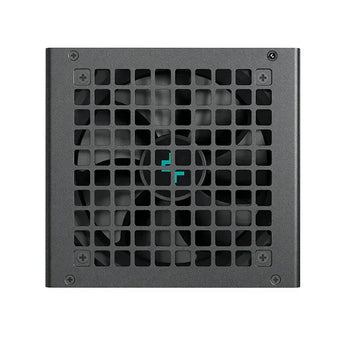

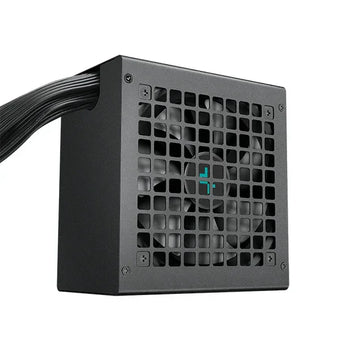

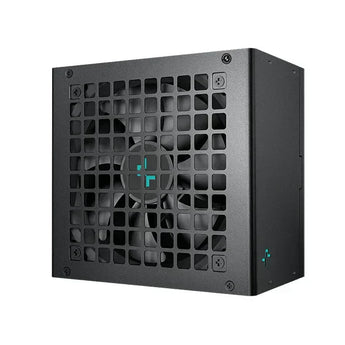

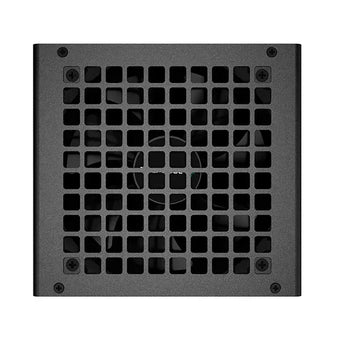

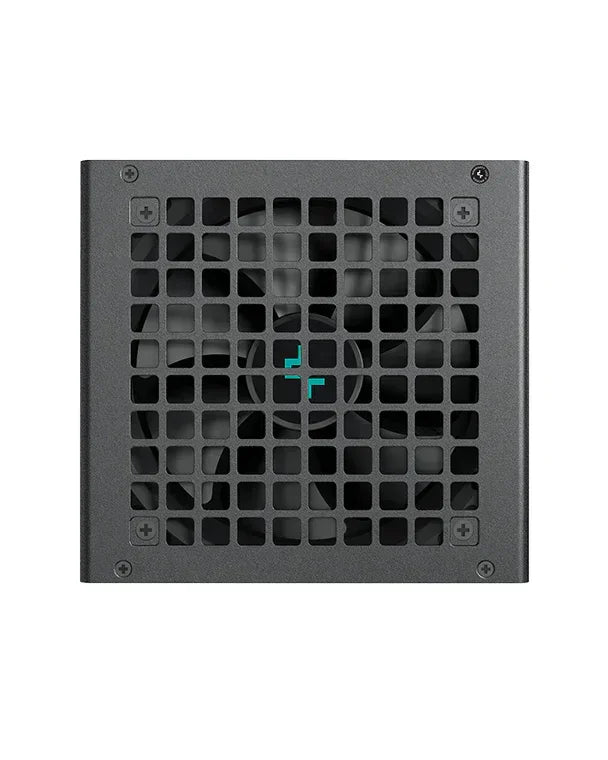

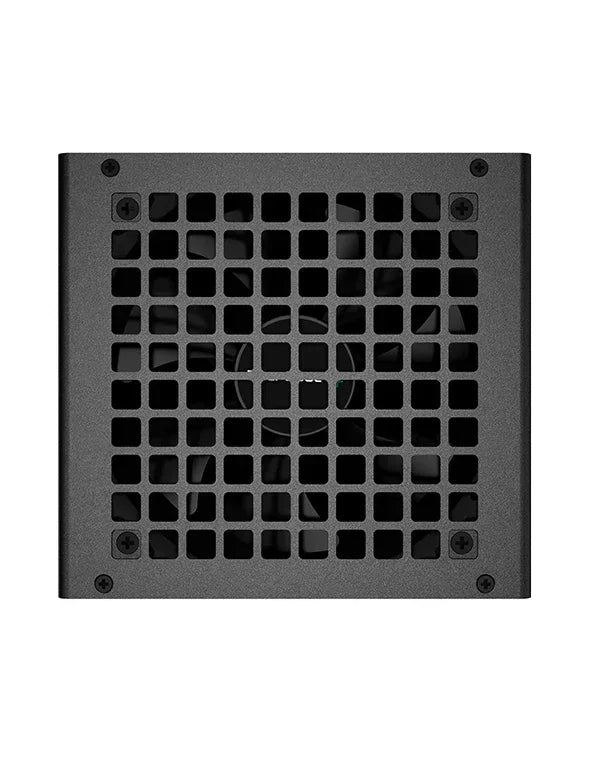

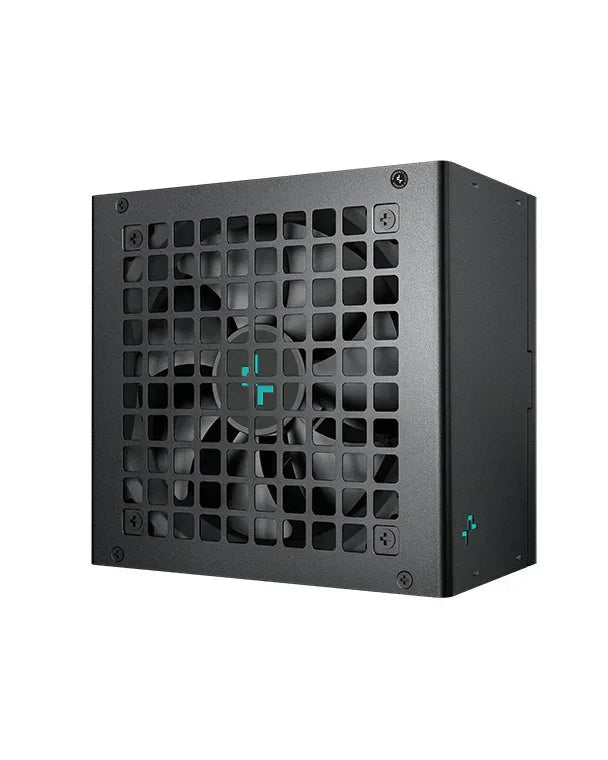

DeepCool PL800D Power Supply

PL800D
Native ATX3.1 Power Supply

NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL800D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 450 watts.
2X
ATX 3.1
1.0X
ATX 2.0
Total Power Excursion

PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

12V-2x6
CABLE
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
Surge & Inrush Protection
No Load Operation

•
  * This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
  Main Power Connector (20+4)Pin x 1
  X1
  CPU(4+4)Pin x 1
  X2
  PCI-E(6+2)Pin x 1
  X1
  PCI-E(6+2)Pin x 2
  X1
  12V-2x6(16Pin) x 1
  X1
  SATA x 4 + 4Pin Peripheral x 1
  X2
• Technical Spec
  Type    ATX12V V3.1
  Product Dimensions    150×140×86mm (W x L x H)
  Efficiency certification    80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级
  Fan Size    120mm
  Fan Bearing    HYB(Hydro Bearing)
  Topology    Active PFC+DC to DC
  Capacitors    Chinese Electrolytic Capacitors
  Power Good Signal    100-150ms
  Hold Up Time    ≥16ms
  Efficiency    ≥85% Under Typical Load(50% Loading)
  Protection    OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
  Operation Temperature    0 - 40℃
  Regulatory    CE/FCC/CCC/RCM/EAC/
  CAN ICES-003(B)/NMB-003(B) /TUV-RH
  Erp Regulation    ErP 2014
  Environment Protection    WEEE/中国 RoHS/Triman/P65
  MTBF    100,000 Hours
