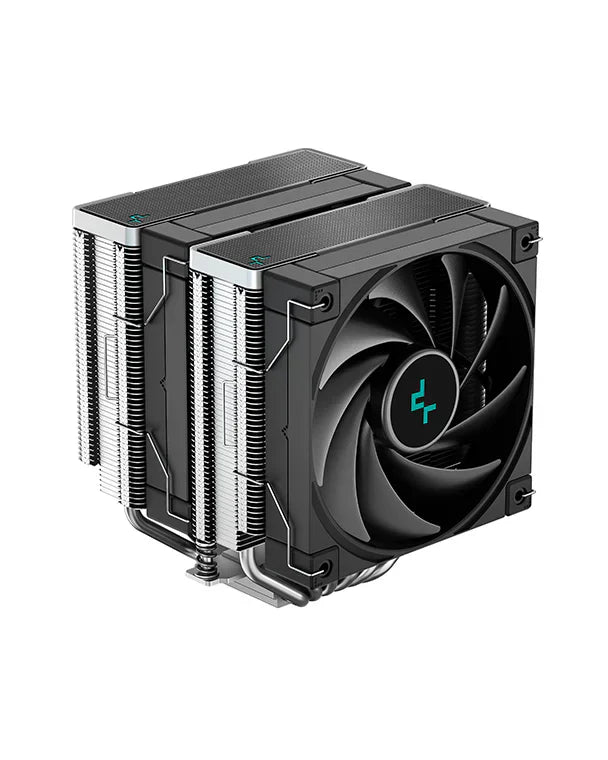

DeepCool AK620 High Performance CPU Cooler

AK620
High Performance Dual Tower CPU Cooler
Unlocked potential
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.

Fan Specs
―
-28 dBA
Full load noise
-500-1850 RPM
Dynamic PWM Range
-50,000 hours
Long operational lifespan
Cool,
quiet,
and powerful

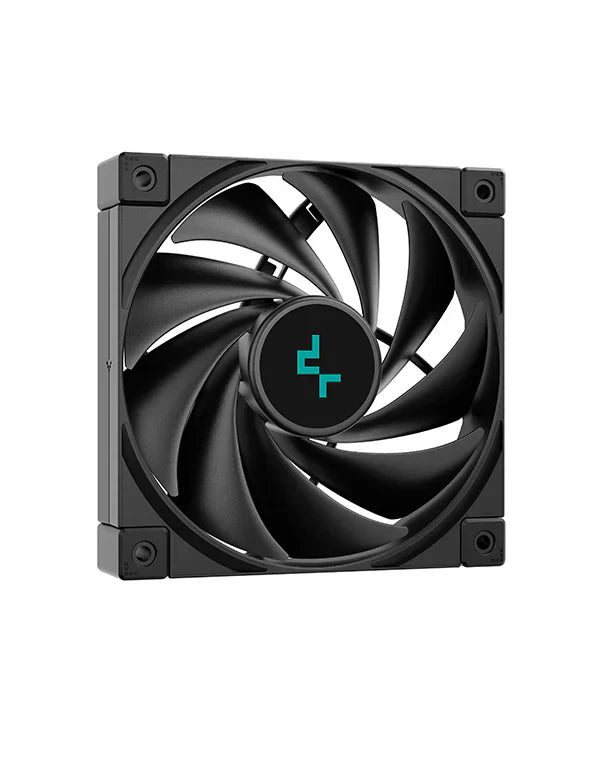

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.

Exceptional cooling by design

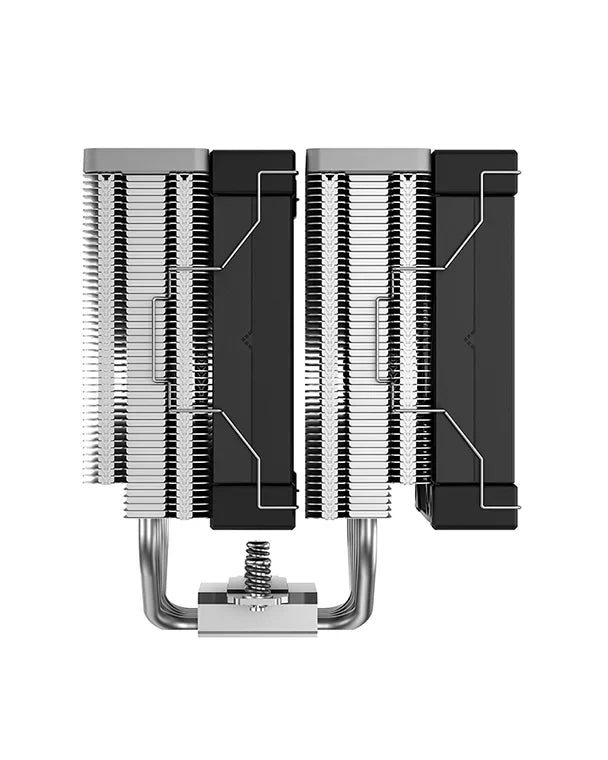

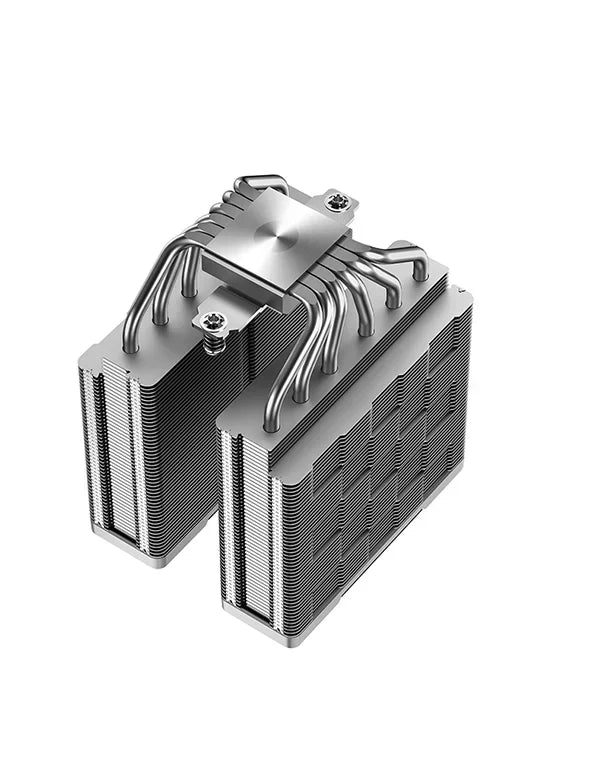

The AK620 features a precision-machined convex copper base and six copper heat pipes that an upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. CTT 2.0 provides a bump in cooling performance. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
160mm Cooler height compatibility
43mm RAM height clearance*
(*59mm in single fan configurations)
Multi-platform simplicity

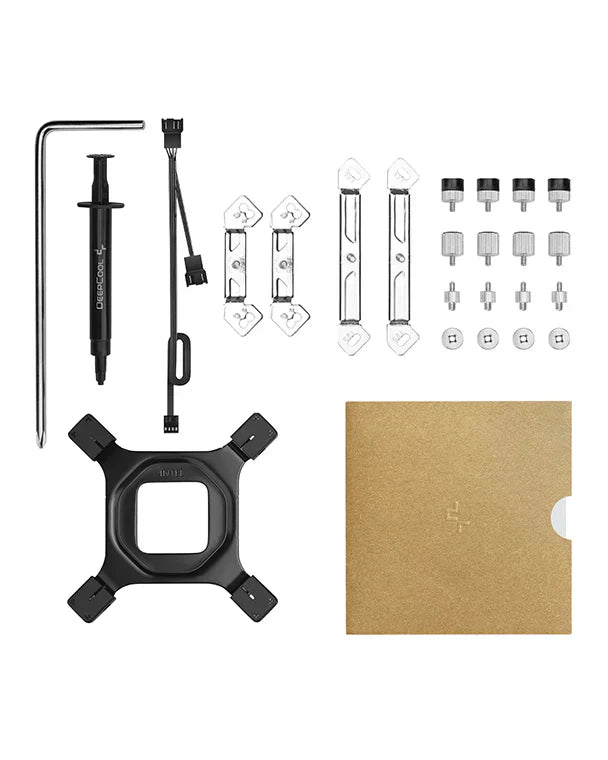

The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
Previous
Next

Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155
AMD
AM5/AM4

Technical Spec
Product Dimensions    129×138×160 mm(L×W×H)
Heatsink Dimensions    127×110×157 mm(L×W×H)
Net Weight    1456 g
Heatpipe    Ø6 mm×6 pcs
Fan Dimensions    120×120×25 mm(L×W×H)
Fan Speed    500~1850 RPM±10%
Fan Airflow    68.99 CFM
Fan Air Pressure    2.19 mmAq
Fan Noise    ≤28 dB(A)
Fan Connector    4-pin PWM
Bearing Type    Fluid Dynamic Bearing
Fan Rated Voltage    12 VDC
Fan Rated Current    0.12 A
Fan Power Consumption    1.44 W
EAN    6933412727316
P/N    R-AK620-BKNNMT-G
